Introduction
Cable trays serve as the core backbone of electrical wiring systems in commercial buildings, industrial plants, offshore engineering, chemical facilities and municipal infrastructure. The selection of cable tray materials directly determines the long-term operational safety of power circuits, overall project maintenance costs, and service life of the entire electrical wiring system.
For global electrical contractors, MEP engineers and project procurement managers, hot-dip galvanized (HDG) cable trays and stainless steel cable trays are the two most mainstream options worldwide. Each material features unique anti-corrosion mechanisms, mechanical performances, budget thresholds and applicable working conditions. Choosing the wrong cable tray material will lead to premature rusting, structural deformation, circuit safety hazards and repeated maintenance costs in the later project operation stage.
In this detailed guide, Sanfeng Electric Company, a professional manufacturer of certified cable tray and electrical wiring systems, conducts a full-dimensional comparison between hot-dip galvanized and stainless steel cable trays. Combined with real global engineering cases, we help you make a cost-effective and reliable material decision tailored to your project environment and budget. All products supplied by Sanfeng Electric comply with CE certification, ISO9001 quality management system, ISO14001 environmental management system and ISO45001 occupational health and safety management system standards, fully meeting European, Southeast Asian and Middle East industrial engineering compliance requirements.
Core Anti-Corrosion Mechanism Difference
Anti-corrosion capability is the most critical indicator for outdoor and industrial cable tray layouts, and the two materials adopt completely different protection principles:
1. Hot-Dip Galvanized Cable Tray: Sacrificial Zinc Coating Protection
HDG cable trays are manufactured by immersing carbon steel base materials into high-temperature molten zinc liquid, forming a dense zinc-iron alloy composite coating with a thickness of 60-120μm on both inner and outer surfaces.
Protection principle: Sacrificial anode protection. The zinc coating will corrode preferentially when exposed to air, moisture and weak corrosive media. Even if the tray surface has scratches or cutting damages during on-site installation, the surrounding zinc layer can continue to protect the internal steel substrate from rusting.
Core feature: Relying entirely on external zinc coating for protection; once the zinc layer is completely consumed after long-term use, the base steel will start to rust rapidly.
2. Stainless Steel Cable Tray: Intrinsic Self-Healing Passivation Protection
Sanfeng Electric provides two mainstream stainless steel grades for cable trays: 304 stainless steel and 316L stainless steel, alloyed with chromium, nickel and molybdenum elements without any surface coating treatment.
Protection principle: Natural passive film protection. Chromium elements in the alloy automatically form a compact chromium oxide passive film on the surface. The film has self-healing performance — scratches and installation damages can be repaired automatically in contact with oxygen.
Core feature: Anti-corrosion performance is inherent to the material itself, no reliance on surface coating; no failure risk caused by coating peeling.
Full Performance Comparison Table: HDG vs Stainless Steel Cable Tray
Excellent in dry indoor, urban outdoor and mild humid environments; poor performance in coastal salt fog, strong acid and alkali chemical environments 304 for general humid industrial sites; 316L for coastal, marine, chemical and wastewater treatment plants; top-tier anti-corrosion performance for harsh working conditions.
15-25 years under mild environments; 5-10 years under high-corrosion environments.
30-50 years with almost no corrosion under harsh environments; ultra-long service cycle with zero coating maintenance.
Suitable Application Scenarios for Each Cable Tray Type
1. Choose Hot-Dip Galvanized Cable Tray When:
(1) Indoor electrical wiring for office buildings, shopping malls, residential complexes and conventional factory workshops with dry and mild air;
(2) Urban municipal outdoor projects away from coastlines and chemical pollution sources;
(3) Large-scale civil construction projects with controlled overall procurement budgets;
(4) Projects requiring fast delivery and convenient on-site flexible processing.
As a cost-efficient mainstream solution, HDG cable trays occupy more than 60% of global conventional building electrical wiring projects, balancing basic anti-rust performance and project procurement cost perfectly.
2. Choose Stainless Steel Cable Tray When:
(1) Coastal wind power projects, port terminals, offshore platforms with heavy salt fog erosion;
(2) Chemical plants, pharmaceutical factories, wastewater treatment stations with acid-base volatile gas;
(3) Food processing factories requiring hygienic, non-pollution and easy-to-clean wiring systems;
(4) Long-cycle infrastructure projects with strict requirements on later maintenance-free operation.
Although stainless steel cable trays have higher upfront investment, they eliminate later maintenance, shutdown repair and replacement costs, bringing lower total cost of ownership (TCO) for long-term harsh-environment projects.
Common Misunderstandings in Cable Tray Material Selection
Misunderstanding 1: HDG cable trays can be used in coastal areas for long-term deployment. Correction: Salt fog will accelerate zinc layer consumption, leading to rapid tray rust within 3-5 years; 316L stainless steel is the only reliable option for coastal sites.
Misunderstanding 2: Stainless steel cable trays never need any inspection. Correction: Although anti-corrosion, regular structural inspection for load-bearing deformation is still required for heavy-load cable laying scenarios.
Misunderstanding 3: Higher material price means better overall project benefit. Correction: Matching materials based on actual working conditions is the optimal solution. It is unnecessary to use expensive stainless steel trays for ordinary indoor projects.
Sanfeng Electric: One-Stop Certified Cable Tray Solutions

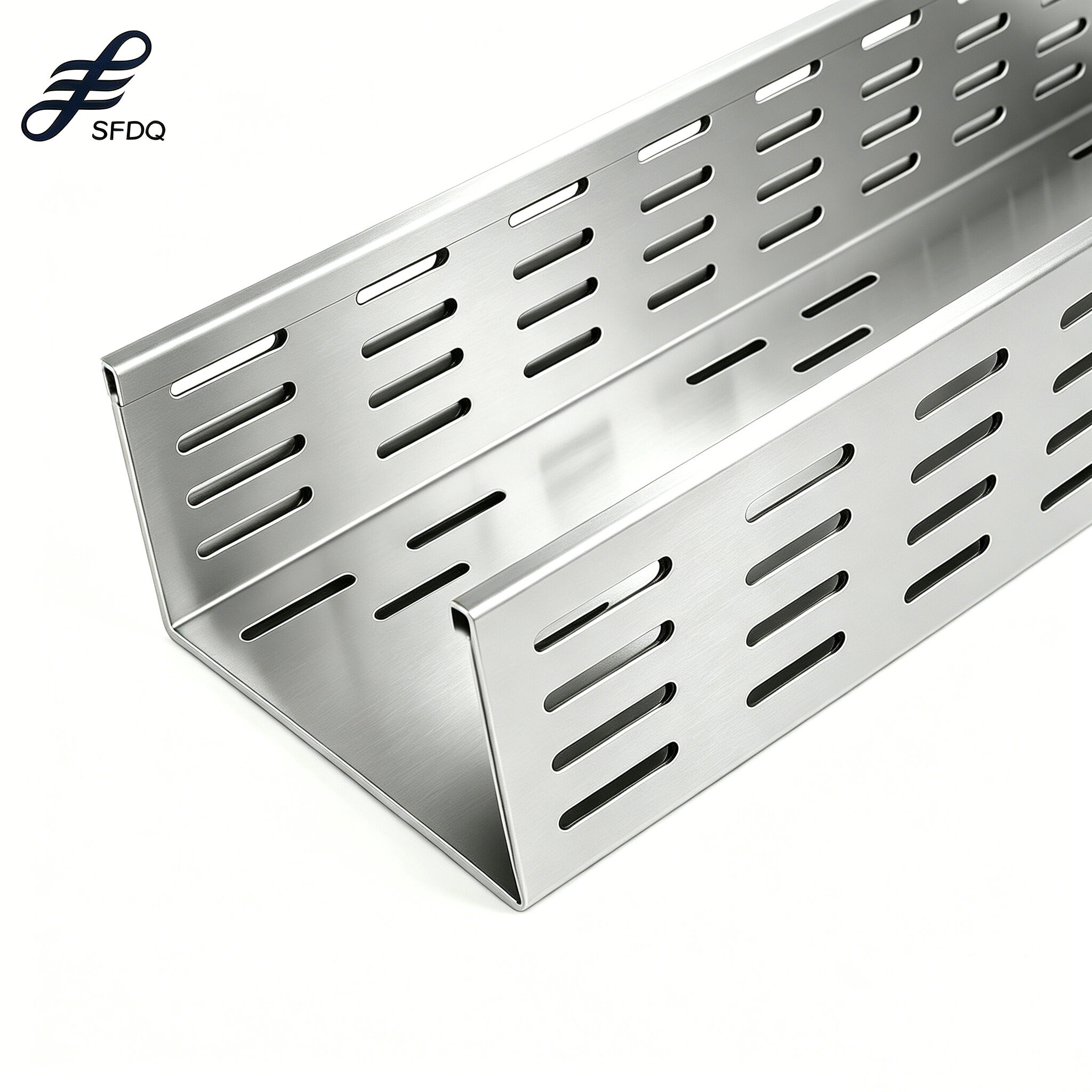

As a professional direct factory manufacturer focusing on global electrical cable management systems, Sanfeng Electric supplies customized hot-dip galvanized cable trays and 304/316L stainless steel cable trays covering ladder type, trough type, perforated type and wire mesh type.All production processes follow international standardized management systems:
ISO9001: Strict full-process quality inspection for raw materials, production and finished products;
ISO14001: Environment-friendly galvanizing and metal processing production lines with zero pollution discharge;
ISO45001: Standardized factory occupational safety management to ensure stable and consistent product quality;
CE Certification: Fully compliant with EU electrical equipment safety standards, supporting smooth customs clearance for European, Middle Eastern and Southeast Asian engineering projects.
We provide free material selection consultation, on-site project solution design and OEM customized service for global electrical contractors, engineering companies and distributors. Our professional engineering team will recommend the most suitable cable tray material scheme according to your local climate, site environment, load demand and project budget, avoiding unnecessary cost waste and potential electrical safety risks.
Final Conclusion
There is no absolute better cable tray material, only the most suitable one for your project:
Hot-dip galvanized cable trays are your priority choice for budget-friendly, mild-environment conventional construction and industrial projects, featuring low upfront cost and convenient construction.
Stainless steel cable trays are the premium long-term solution for harsh corrosive environments, realizing maintenance-free operation and reducing overall project lifecycle cost.
If you are still confused about cable tray material matching for your ongoing or upcoming projects, feel free to contact Sanfeng Electric for free professional technical support and quotation service.
